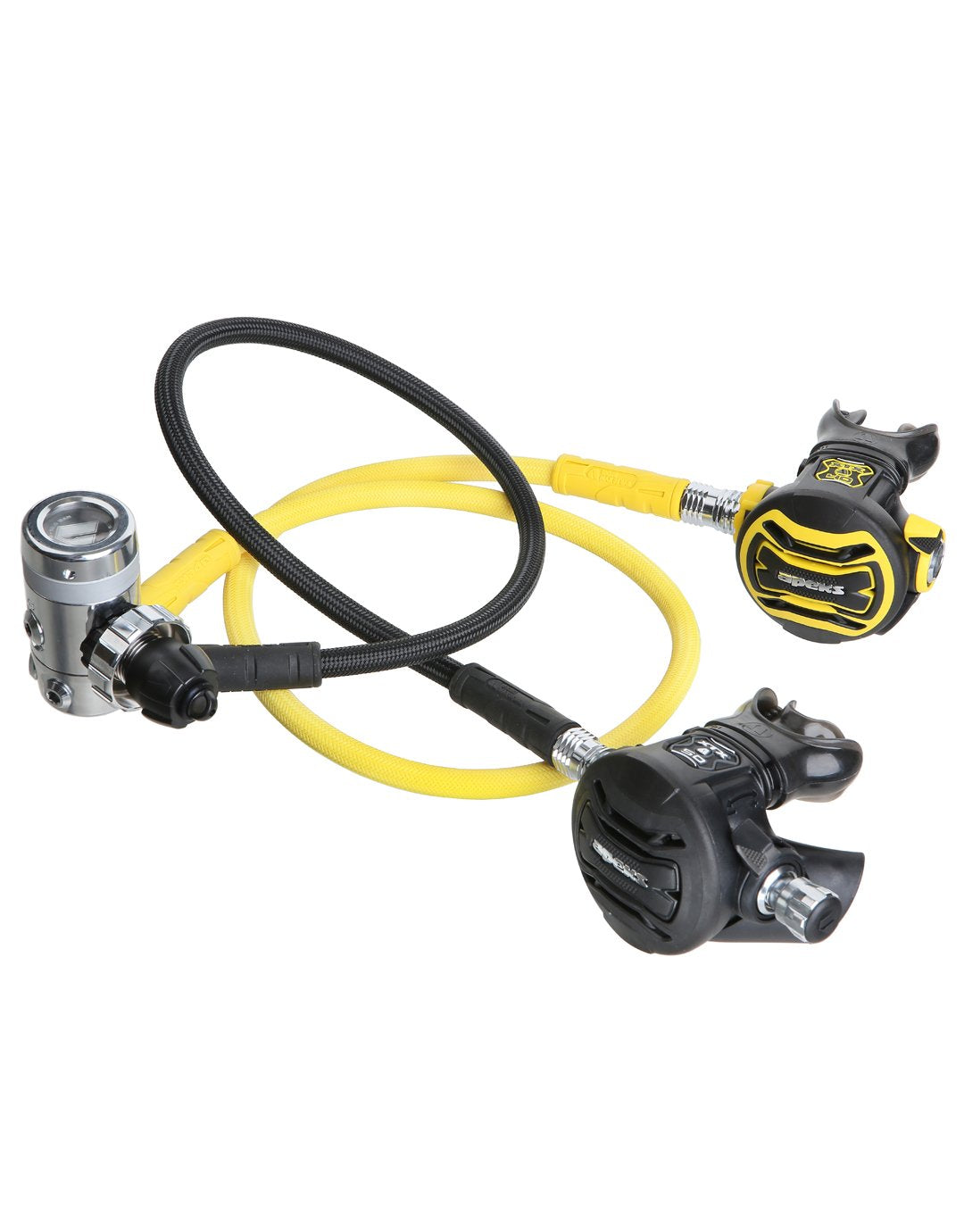

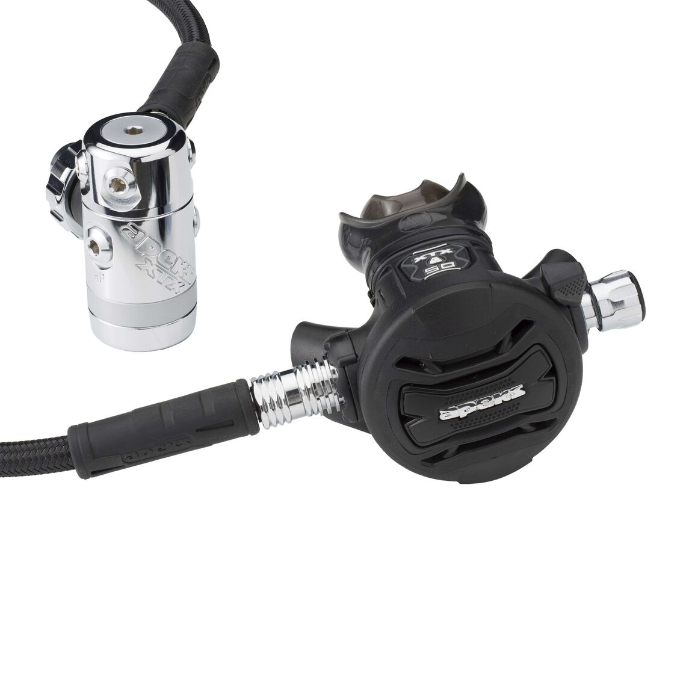

The Apeks XTX50 is for the discerning diver who wants the benefits of a feature-rich regulator at a moderate price.
This popular regulator has four medium-pressure ports all mounted on a rotating turret, resulting in optimal hose routing while eliminating sharp bends in the hose.
Four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.
Features an innovative Diver Changeable Exhaust system (DCE). This system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. This gives the user a choice, wider exhaust tee for minimal bubble interference (essential for underwater photography) and narrow exhaust tee for a smaller compact comfortable regulator.
The regulator is supplied with both sets of exhaust tees. Optional 5th port is available for sidemount or twin cylinder set ups.
Can be converted from a right-handed hose configuration to a left-handed one. The process of changing the regulator to a left-handed configuration is both quick and simple.
However this procedure must ONLY be performed by an APEKS Authorised Service Technician.
Available in yoke or DIN configuration. Braided flexi-hoses are now standard on all models. These hoses are lighter weight, more flexible and more durable.
Suitable for coldwater use (below 10 C / 50 F). Compatible with EAN40 out of the box.

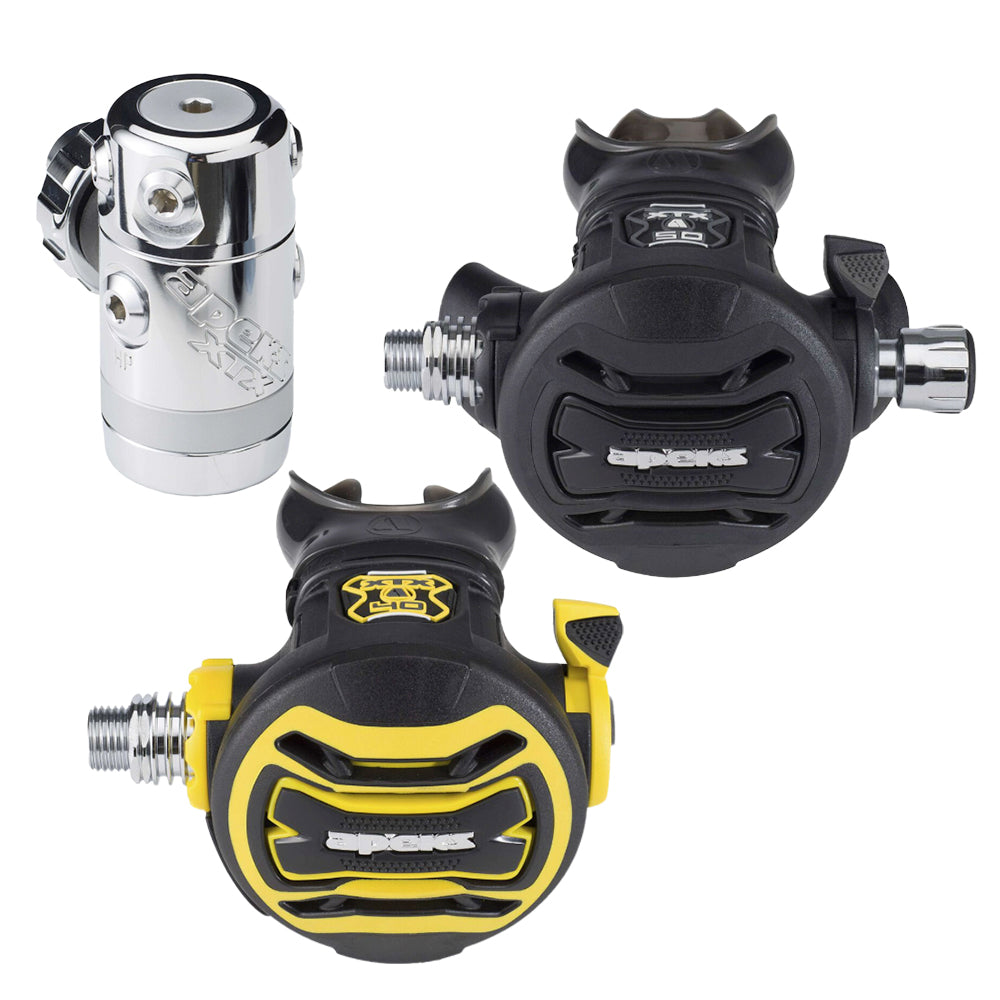

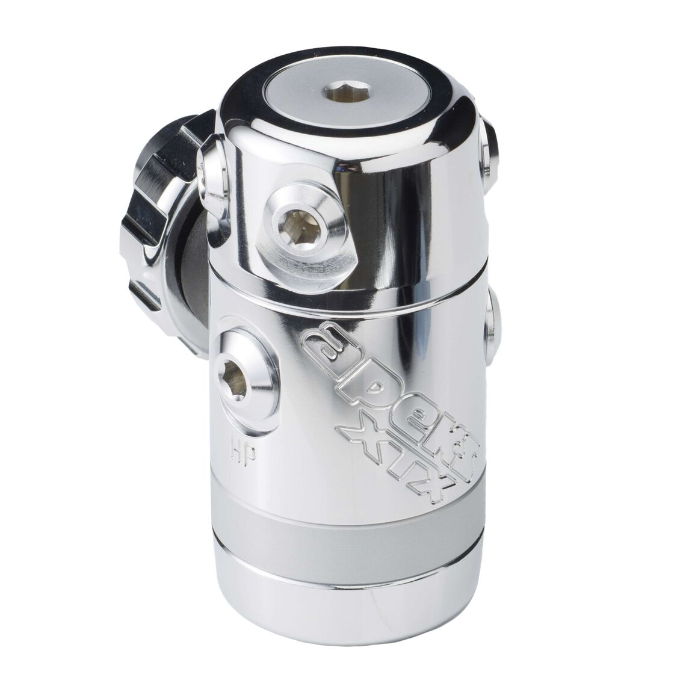

FEATURES - 1st stage XTX50
- Uses the DST first stage
- 2 HP ports and 4 MP ports on a rotating turret are angled for optimum hose routing
- Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
- An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.

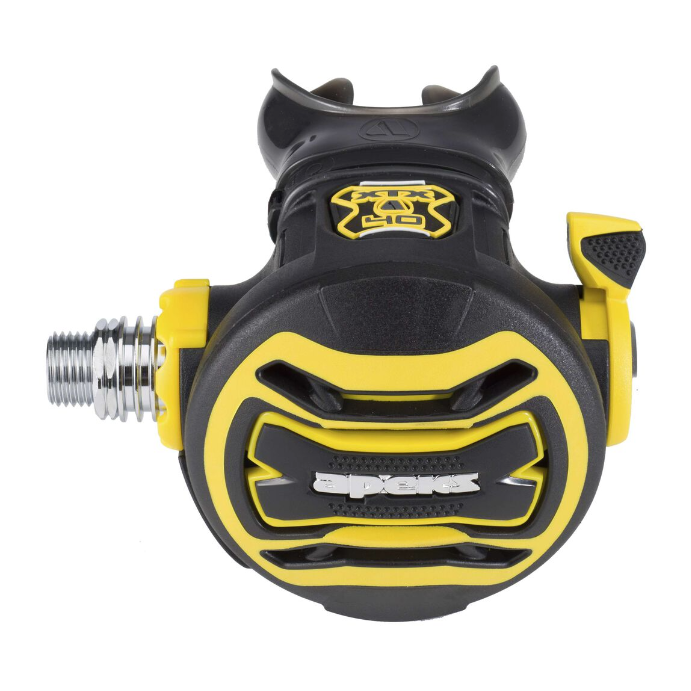

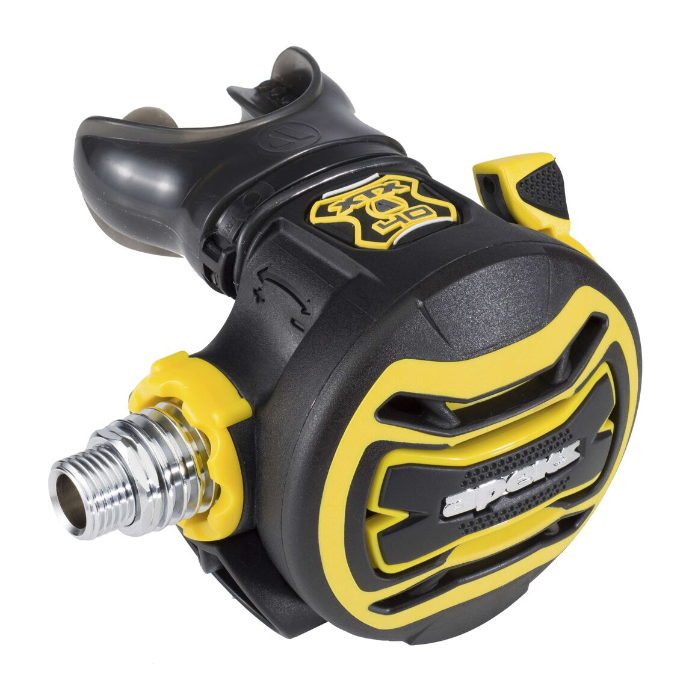

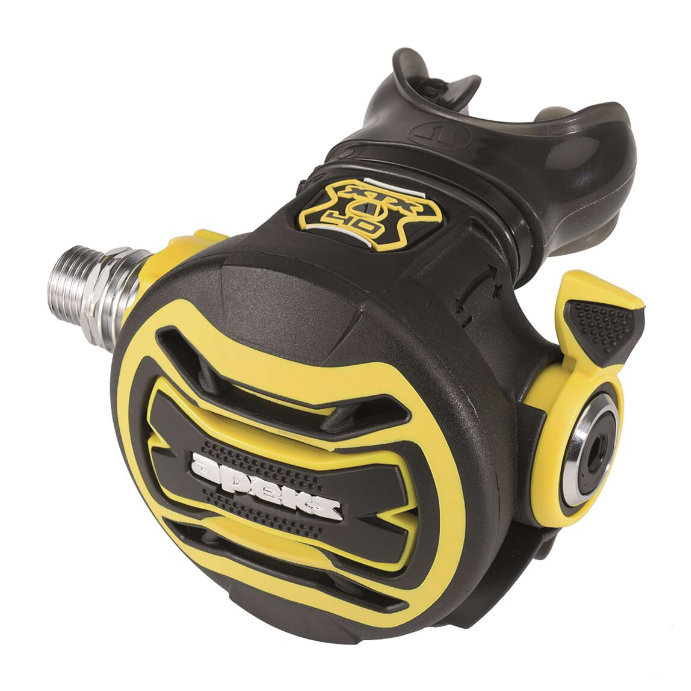

FEATURES - 2nd stage XTX40
- Pneumatically-balanced second stage results in smooth, easy breathing.
- The XTX purge buttons are large and easy to operate. A 2-stage progressive purge is used - press the purge on the side for a lower flow rate, useful where more control is required such as filling lift bags etc, then press in the centre for the full effect of the purge, i.e. when regulator clearing etc.
- The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.
- Easy-to-grip opening effort control knob keeps the diver in control.
- The second stage is manufactured with active protection against infection as all molded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mould, yeast and algae.
- A silicone exhaust valve improves the breathing performance of the regulator.
- The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue.
- A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
TECHNICAL SPECS
- Connections Yoke and DIN available
- Type of first stage Over-balanced diaphragm design, environmentally sealed
- Body Type MP ports mounted on swivel turret
- Number of HP ports 2 (7/16" UNF)
- Number of MP ports 4 (3/8" UNF)
- Environmental Dry Kit Standard
- First stage exterior Chrome over marine brass
- Orientation Convertible LH or RH
- Coldwater Use: Yes
- Type of second stage Pneumatically balanced
- Opening Effort Control Knob: Yes
- Integrated Venturi Lever: Yes
- Mouthpiece Comfo-bite™
- Exhaust tee Diver Changeable - comes with 2 sets
- Heat Exchanger for freezing resistance: Yes
- Hose type Braided Flexi-hose
- Overall work of breathing (WOB) scores Avg. 0.70 joules/liter
- Nitrox compatible Yes to 40% O2 when new, out of the box / Can be cleaned to 100%
- Weight Yoke 1269g / DIN 1139g
Colour: Bright Chrome/Black
